Appliance
Liebherr wine cabinets

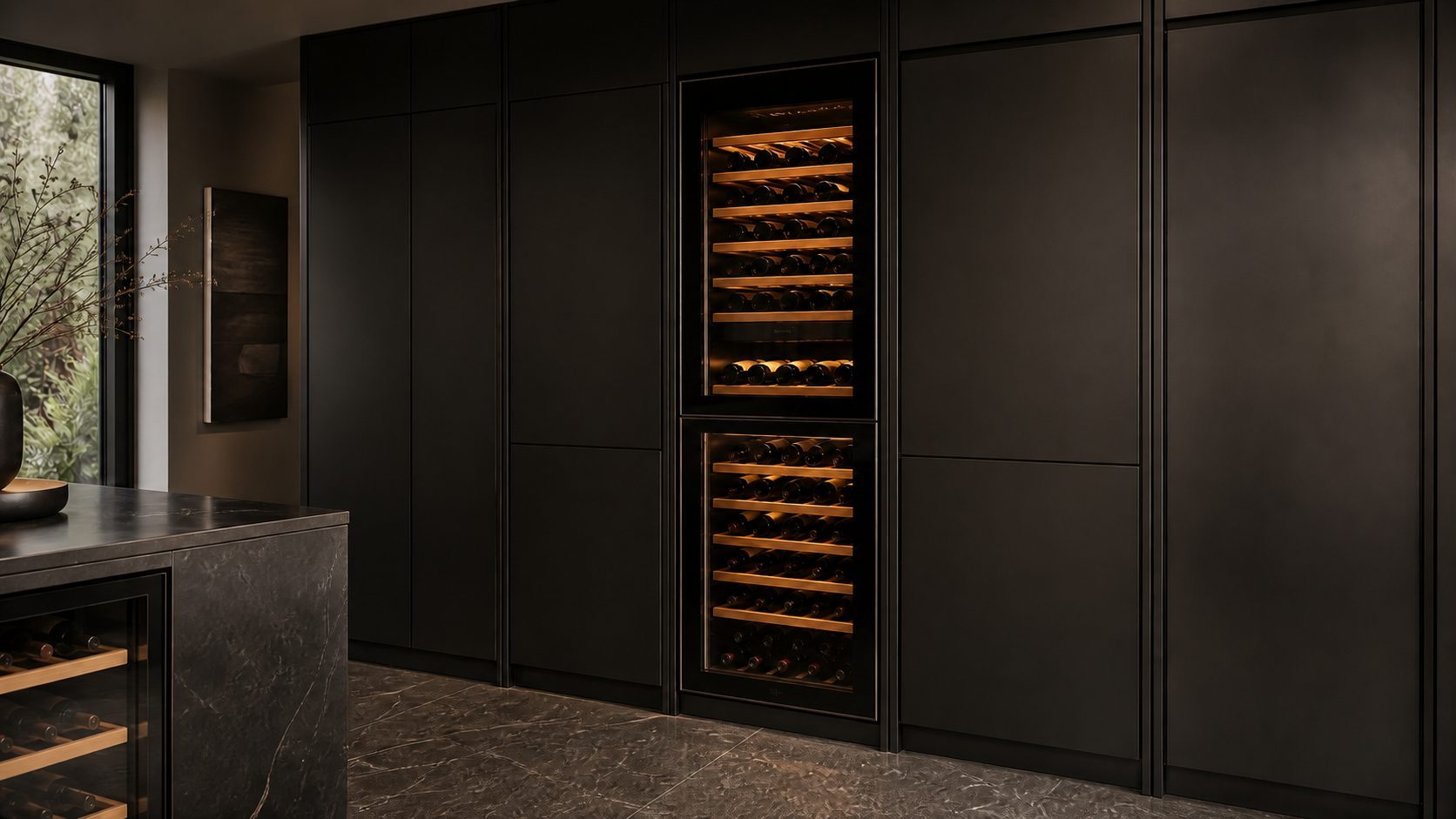

The tall cabinets — the ones that stand in the run of the kitchen or behind your own panel, hold a hundred bottles or more and divide themselves into two or three zones. Nine of the eleven Liebherr wine cabinets in the current US line are multi-zone, and three of those are Monolith columns. On a cabinet this size the door, the seal and the alignment matter as much as the refrigeration, because there is a great deal of cold glass and a great deal of Miami air.
- 9 symptoms we are called out to
- From $95 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
The short version
What this equipment is, for a repair
Configurations
Tall cabinets · two and three zones · glass or paneled
Access
Planned before the visit, not discovered on arrival
Parts
OEM, available on order
Diagnostic
From $95, credited to the repair
What goes wrong with it
Symptoms we are called out to on Liebherr wine cabinets
Each one covers the likely causes in the order they are worth checking, and what to do in five minutes before booking anything.
-
Often two appliances, not one problem One compartment cold, the other is not
The freezer holds and the refrigerator drifts, or the reverse. Before anything else, find out whether you have one appliance or two — on this make a Side-by-Side is two separate cabinets behind two matching doors.
- Freezer fine, fridge warm
- Fridge fine, freezer warm
- Two doors, one continuous run of cabinetry
-
Most of these are documented, and normal Refrigerator or freezer beeping
The single most searched thing about this make, and most of the answers are in the manual rather than in a repair. Liebherr documents a door alarm, a temperature alarm and a power-failure indicator, and each of them stops when its cause goes away.
- Beeping with the door open
- Beeping after loading or rearranging
- Beeping that will not stop with the door shut
-
Usually a change, not a breakage Display flashing or blinking
The display is flashing and nothing obvious is wrong. On this make that is documented behavior in two cases and a genuine alarm in a third — and telling them apart takes a look rather than a visit.
- Flashing right after you changed a setting
- Flashing after loading the freezer
- Flashing together with the alarm LED
-
The maker's own first questions cost nothing Loud running noise
One of the six rows in the maker's own troubleshooting table, and its published answers start with things you can check yourself in two minutes.
- Vibration that comes and goes
- Rattling that stops if you touch the cabinet
- A hum that got louder over months
-
Cold made and not delivered Fan not working
The refrigeration is producing cold and something has stopped moving it. It shows up as one area warm while another is fine, and it often arrives with a noise.
- One shelf warm, the rest right
- Noise that changed before the temperature did

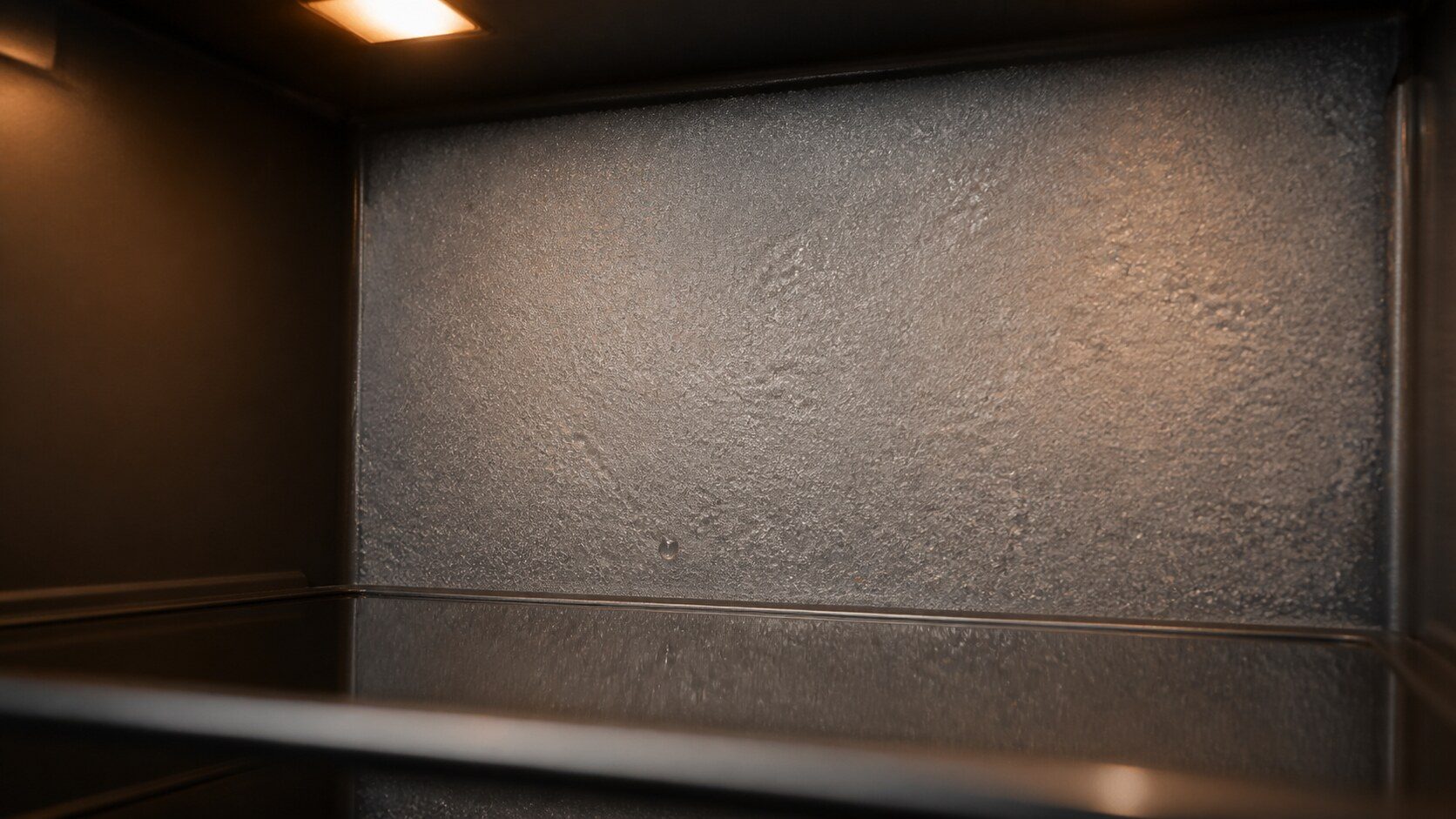

- Ice on the evaporator behind the panel
-
Check the free answer first Interior light not working
The light is out and the cabinet is still cold. On this make there is a documented reason for that which costs nothing to check.
- Light out, temperature fine
- Out since the door was left open
- Wine cabinet light that will not turn off
What we do on it
Repairs we carry out on Liebherr wine cabinets
Starting figures for this equipment in South Florida. The exact cost is confirmed after an on-site diagnostic — and this is not the whole list of what can go wrong, so call if your problem is not here.
-
from $95 Diagnostic visit
We work out what is actually wrong before anybody quotes a part. On this make that starts with a question most technicians skip: is the appliance reporting a problem, or is it telling you something it was designed to tell you? A flashing display and a sounding alarm are frequently correct behavior. The fee is credited toward the work when you go ahead.
- The plate read first — three numbers, not one
- Signals told apart from problems before any part is named
- Credited toward the repair
-
from $650 Sealed system repair
Refrigerant work: the compressor, condenser, evaporator, drier and the tubing between them. It is licensed work with recovery equipment, it is the most expensive thing that can be wrong with a cold appliance, and it is diagnosed by measurement rather than by elimination.
- Diagnosed with pressures and temperatures, not guesswork
- Checked against the maker’s own sealed-system position first
- A figure in writing before anything is opened
-
from $850 Compressor replacement
Sealed-system work plus the compressor itself. It is the largest single job on a cold appliance, and it is worth being certain about before it is quoted — a compressor that is running but not achieving pressure and a compressor that has failed are different diagnoses with different answers.
- Confirmed by measurement before it is quoted
- Warranty position checked first
- Recovery, replacement and recharge as one job
-
from $145 Condenser and airflow service
The maker names ventilation first among the causes for both "motor seems to run too long" and "the temperature is not cold enough". In South Florida a condenser fills faster than anywhere else in the country, and this is the least expensive visit on this page.
- Named first by the maker for two of its own symptoms
- Labor and access rather than parts
- The visit that prevents the expensive ones
-
from $175 Evaporator fan and running-noise repair
Loud running noise is one of the manual’s own six troubleshooting rows. It is worth taking seriously and it is worth ruling out the free causes first, because two of the three usual answers cost nothing at all.
- Levelling and contact checked before any part
- Fan, compressor mount and airflow told apart
- A noise that changes with the door is a different answer
-
from $175 Temperature sensor and probe replacement
The cabinet is holding a temperature it thinks is right and is not. A sensor is a resistance at a known temperature, so this is one of the few things on a cold appliance that can be proved rather than inferred.
- Proved with a measurement, not a guess
- The part is inexpensive; the figure is access
- Checked against an independent thermometer
-
from $245 Control board and display repair
The board is the expensive part on a cold appliance and the one that gets blamed first and wrongly. It is also, occasionally, genuinely the answer — and telling those two situations apart is what this visit is for.
- Everything the board controls checked before the board
- Buttons, display and control separated
- Never the first thing named
-
from $155 Door seal replacement
The cheapest thing on a cold appliance that costs real money if it is ignored. A seal that no longer grips is warm air entering continuously, which is a compressor running longer, ice forming where it should not, and a wine cabinet fogging on the inside of its glass.
- A paper test anyone can do before calling
- Seal, then alignment — in that order
- The first thing to check behind condensation
-
from $165 Door alignment and hinge repair
On an integrated cabinet the door carries your own cabinet front, so alignment is joinery work as much as appliance work. A door that has dropped a few millimeters shows up first as a seal that no longer grips and second as a run of cabinetry that no longer lines up.
- Appliance door and cabinet front aligned together
- Hinges, closers and the panel mounting
- Re-tested against the seal
-
from $195 Integrated panel and column refit
Taking a fully integrated column out of joinery and putting it back level, plumb and aligned to its neighbors. Ten of the refrigerators in this line and every one of the freezers are fitted this way, so on this make it is routine work rather than an exception.
- Planned before the visit, not discovered during it
- Level, plumb and aligned to the run
- Panel, plinth and toe-kick refitted properly
-
from $145 Alarm and power-failure diagnosis
This visit exists because of what this make documents. A flashing display, a sounding alarm or a lit power-failure light is frequently the appliance working exactly as designed — and a visit that ends "nothing is wrong, and here is what it was telling you" is a real visit that took real time. Priced accordingly, and described honestly.
- May end in no repair at all, and we say so upfront
- Every documented signal checked against the manual
- The alarm history read before anything is cleared
-
from $195 Wine cooler zone repair
Six of the eleven wine cabinets in this line hold two temperature zones and three hold three. One zone drifting while the others hold is a much smaller job than "the wine cabinet has failed", and it points straight at where to look.
- One zone diagnosed rather than the whole cabinet
- Settings checked before parts
- Seals and glass treated as temperature parts
-
from $135 Appliance maintenance visit
On cold-only equipment maintenance is a short and specific list, and it is the visit that prevents most of the expensive rows on this page.
- Condenser, seals, drainage, alignment, temperature
- Second appliance on the same visit costs much less
- Findings written down rather than announced
-
from $175 Appliance installation and refit
Levelling, door alignment, panel fitting and the water connection where there is one. On integrated cabinets the installation decides how the appliance performs and how long it lasts, which is why it is a service rather than an afterthought.
- Level and plumb, then aligned to the run
- Clearances the manual actually specifies
- Water connection tested under pressure
In more detail
About Liebherr wine cabinets
Nine multi-zone cabinets, and three of them are Monolith
Liebherr wine cabinets is the trade's word and the maker's own showroom word for these; most of South Florida types wine cooler or wine fridge instead, and those go to wine refrigeration and wine fridges. The appliance is the same one.
Of the eleven wine cabinets Liebherr lists for the US, six hold two temperature zones and three hold three; MW 1810, MW 2400 and MW 2401 are Monolith columns built to disappear into the joinery behind your own panel. The remaining two are single-zone, and a single-zone unit is usually the undercounter kind covered on wine fridges.
Why the door is half the appliance here
A tall wine cabinet is mostly door. A full-height glass panel is a large area of cold surface facing a humid room, and a full-height paneled door hangs your own cabinetry on the appliance hinges. Both mean the same thing in practice: alignment and sealing are not cosmetic on this appliance, and they are what most often brings us out to a cabinet whose refrigeration is in perfect health.
- A seal that has hardened or lifted at a corner, which shows first as condensation and then as a zone that will not hold
- A door that has dropped, on a paneled cabinet usually visible as a panel out of line with its neighbors
- Hinges and dampers on a door that is heavier than any other door in the kitchen
- Interior lighting and locks, which do not touch the wine and are still worth putting right
What is behind the glass matters too
Presentation shelving, telescopic runners and the way a cabinet is loaded change how air moves inside it. A cabinet packed to the back of every shelf can read correctly at the sensor and be several degrees out at the bottle, which is worth ruling out before anybody opens the appliance. If a zone reads right and behaves wrong, say so when you book.
What to have ready when you call
The model number from the plate inside on the left, how many zones the cabinet has, what each is set to and reading, whether the door is glass or paneled, and whether the cabinet is freestanding or fitted into the run. On the glass itself, condensation and ice in a wine cooler door separates the Miami air from a failing seal.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about liebherr wine cabinets
The top of the cabinet is at the right temperature and the bottom is not.
Useful information rather than bad news, and worth saying when you book. A dual-zone or triple-zone cabinet controls each zone separately, so one zone off while the others hold points at that zone — its sensor, its fan, its damper. Tell us which zone has drifted, what it is set to and what it is reading, and the visit starts much further along than it otherwise would.
There is condensation on the inside of the glass door.
In a Miami summer some of that is the room rather than the cabinet: warm humid air against a large panel of cold glass will fog it, and a kitchen that opens to outside does it daily. What is not normal is water pooling in the base, a seal that no longer grips a sheet of paper anywhere along its length, or fogging that stays all day with the door shut. The seal is the first thing to look at and the cheapest thing to fix.
My cabinet is behind a cabinet front rather than glass. Does that change anything?
It changes the door, not the refrigeration. A paneled cabinet carries the weight of your joinery on the appliance door and its hinges, which is why paneled cabinets come to us for alignment more often than glass ones do — and why a panel sitting proud of its neighbors is worth a call before it becomes a seal that no longer closes. It also changes the access: a cabinet fitted into the run does not roll out.
Is it worth repairing a cabinet this size, or should I replace it?
Ask what has failed before deciding. Lighting, a door seal, a hinge, a fan, a control board or a zone sensor are ordinary repairs on a cabinet that will keep going for years, and on a cabinet of this size they are a small fraction of replacing it. A sealed-system failure is the other conversation, and on a Liebherr it is worth asking about the maker's own five-year sealed-system position first. We will tell you which of the two you have, and we will say plainly when the work approaches what the cabinet is worth.
